ACHV High Voltage Inverters

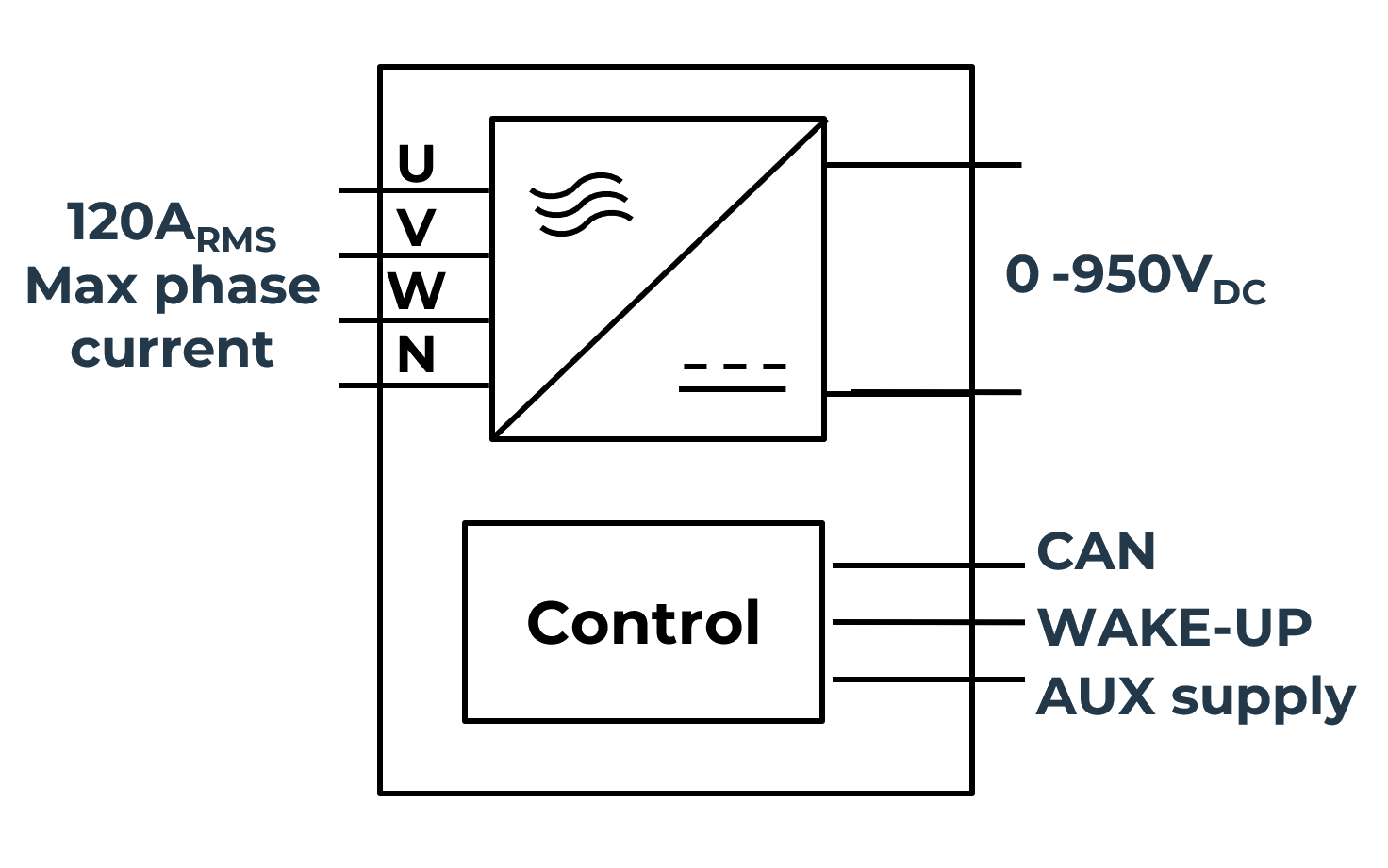

This three-phase bidirectional multiverter operates within a DC range of 0-950 V and an AC range of 0-480 V. It delivers a maximum output power of 80 kW and supports an effective current capacity of 120 A per phase. The inverters can be parallelized and synchronized to reach higher power, up to MWs. Different AC operation modes are available : Grid Following, Grid forming, DC bus control to follow the battery voltage.
With flexible software control, this inverter can function as an independent single-phase unit, a balanced three-phase system, or an unbalanced system with a neutral connection.
BrightLoop’s ACHV inverter is ideal for high-power on-board chargers, UPSs, gensets and renewable energy-grid interfaces.
